SPRAY BALL ROTARY
| Item Name | Sanitary Stainless Steel Rotating CIP Spray Ball |
| Standards | 3A / SMS / DIN / RJT / IDF |
| Sizes | 1/2" - 6" DN15 - DN150 |
| Material | SS304 / SS316L |
| Seal | Silicone / EPDM / Viton / NBR / PTFE |
| Connection Type(s) | Weld End / Clamp End / Thread End |
| Operation Type(s) | Manual / Pneumatic / Electric |
| Handles | × |
| Surface Finishing | Ra ≤ 0.8μm |
| Working Temperature | -10°C to 102°C ( EPDM ) |
| Pressure Rating | 0.2 - 10 Bar ( DN25 - DN100 ) 0.2 - 8 Bar ( DN125 - DN150 ) |
| Application Scopes | Dairy / Food / Beverage / Pharmacy / Cosmetic / Chemical |
| Marking | Laser Marking |

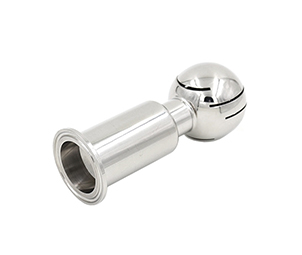

| Clamped Rotary Cleaning Spray Ball CD1202010 | |||||||||||
| Size | A | Q | K | ||||||||
| DN15 | 1/2" | 120 | 40 | 50.5 | |||||||
| DN20 | 3/4" | 138 | 53 | 50.5 | |||||||
| DN25 | 1" | 138 | 53 | 50.5 | |||||||
| DN32 | 1 1/4" | 138 | 53 | 50.5 | |||||||
| DN40 | 1 1/2" | 138 | 53 | 50.5 | |||||||
| DN50 | 2" | 168 | 76 | 64 | |||||||
| DN65 | 2 1/2" | 190 | 76 | 77.5 | |||||||

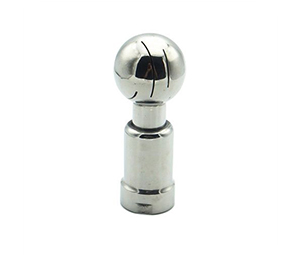

| Rotary Cleaning Spray Ball Male/Lnside CD1204011 | |||||||||||
| Size | A | Q | K | ||||||||
| DN15 | 1/2" | 110 | 40 | G 1/2 | |||||||
| DN20 | 3/4" | 138 | 53 | G 3/4 | |||||||
| DN25 | 1" | 140 | 53 | G 1 | |||||||
| DN32 | 1 1/4" | 160 | 53 | G 1 1/4 | |||||||
| DN40 | 1 1/2" | 170 | 53 | G 1 1/2 | |||||||
| DN50 | 2" | 192 | 76 | G 2 | |||||||
| DN65 | 2 1/2" | 220 | 76 | G 2 1/2 | |||||||
